DS254VG-300/G Type 1+2+3 AC surge protector - 3-phase+N, 25kA / 70kA

Reference price :

Select a product to request a quote

DS254VG-300/G Type 1+2+3 AC surge protector - 3-phase+N, 25kA / 70kA

Name: DS254VG-300/G Type 1+2+3 AC surge protector - 3-phase+N, 25kA / 70kA
Brand: CITEL
SKU: DS254VG-300/G
Availability: InStock
Rating: 5 (1 reviews)

Series

DS250VG
Model

DS254VG-300/G
Brand / Made in

CITEL / FRANCE

Type 1+2+3 unipolar surge protector
25 kA on 10/350µs impulse
Low voltage Up
Internal disconnection, status indicator and remote signaling
Optimized to TOV
IEC 61643-11 and UL1449 ed.5 compliance

DS254VG-300/G

Type 1+2+3 AC surge protector - 3-phase+N, 25kA / 70kA, VG Technology

The products of the range DS250VG is an extreme duty Type 1+2+3 AC surge protector device designed to protect at the entrance of the electrical installation.

This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (eg: buildings equipped with lightning rods).

The `Spark gap + Varistor` technology allows a very low level of protection and an absence of following current.

The DS250VG is mounted on a DIN Rail and has a double connection for the active conductor, which allows an optimized connection to the network.

Product specifications

Product specifications
product manual
Download file

Electrical Characteristics

SPD type (following IEC tests): 1+2+3
Network: 230/400 V 3-phase+N
AC system: TT-TNS
Nominal line voltage Un: 230/ 400 Vac
Max. AC operating voltage Uc: 255 Vac
Max. load current(if series connection) IL: 100 A
Temporary Over Voltage (TOV) Charasteristics - 5 sec (Without disconnection) UT: 335 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn (Without disconnection or with safety disconnection) UT: 440 Vac disconnection
Temporary Over Voltage N/PE (TOV HT) (Without disconnection or with safety disconnection) UT: 1200 V/300A/200 ms withstand
Residual Current Leakage current to Ground Ipe: None
Follow current If: None
Nominal discharge current (15 x 8/20 µs impulses) In: 30 kA
Max. discharge current (max. withstand @ 8/20 µs by pole) Imax: 70 kA
Impulse current by pole (max. withstand 10/350µs by pole) Iimp: 25 kA
Total lightning current(max. total withstand @ 10/350µs) Itotal: 100 kA
Withstand on Combinaison waveform IEC 61643-11 Class III test: 1.2/50µs - 8/20µs Uoc: 20 kV
Withstand on overvoltages IEEE C62.41.1: 20 kV
Admissible short-circuit current Isccr: 50000 A
Connection mode(s): L/N and N/PE
Protection mode(s): Common/Differential mode
Residual voltage @ In (8/20 µs) Up-in: 1.1 kV
Protection level L/N @ In (8/20µs) Up L/N: 1.5 kV
Protection level N/PE @ In (8/20µs) Up N/PE: 1.5 kV
Specific energy by pole max. withstand 10/350 µs W/R: 156 kJ/ohm
Internal short circuit protection: No
Internal Thermal protection: Yes

Mechanical Characteristics

Technology: VG
SPD configuration: 3-phase + N
Connection to Network: By screw terminals: 6-35mm² / by bus
Format: 1-pole modular box assembled
Mounting: Symmetrical rail 35 mm (EN 60715)
Housing material: Thermoplastic UL94 V-0
Operating temperature: -40/+85°C
Protection rating: IP20
Failsafe mode: Disconnection from AC network
Disconnection indicator: 1 mechanical indicator by pole
Remote signaling of disconnection: Output on changeover contact

Disconnectors

Thermal disconnector: Internal
Installation ground fault breaker: Type S or delayed
Fuses: Fuse assembly: SFD1-25-31S / or Fuses Type gG 315 A

Standards

Standards compliance: IEC 61643-11 / EN 61643-11 / UL1449 ed.4
Certification: UL / EAC

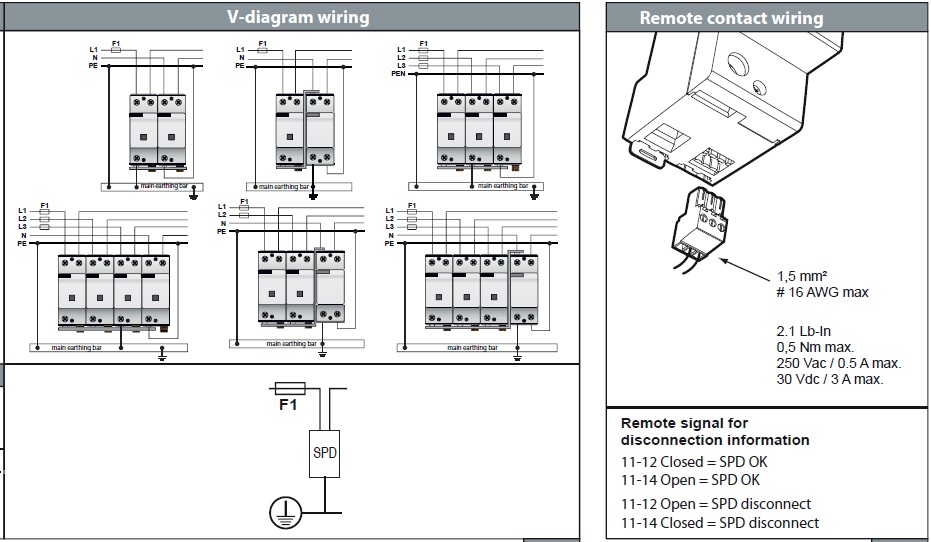

INSTALLATION

DS254VG-300/G Type 1+2+3 AC surge protector - 3-phase+N are connected in parallel on the AC network and must be equipped with external fuses for short-circuit current protection

The total length of parallel connection wires to AC network must be lower than 0.5 m in order not to increase the protection level (Up) provided by the SPD.
Wiring is made by screw connections. On some models, a distribution bus can be used.
The protection wire coming from the SPD must be connected to the bonding bar of the electrical panel. Paralleling the protection wire with phases conductors must be avoided.
The cross sectional wire must be 6 mm² minimum for Type 2 SPD and 16 mm² for Type 1.
Local earthing resistance must be in compliance with the electrical rules.

Further information can be found in IEC 61643-12 standard (selection and application principles for low voltage SPD).
