DS250VG-300 Type 1+2+3 AC surge protector - 1 pole

Reference price :

Select a product to request a quote

DS250VG-300 Type 1+2+3 AC surge protector - 1 pole

Name: DS250VG-300 Type 1+2+3 AC surge protector - 1 pole
Brand: CITEL
SKU: DS250VG-300
Availability: InStock
Rating: 5 (1 reviews)

Series

DS250VG
Model

DS250VG-300
Brand / Made in

CITEL / FRANCE

Type 1+2+3 unipolar surge protector
25 kA on 10/350µs impulse
Low voltage Up
Internal disconnection, status indicator and remote signaling
Optimized to TOV
IEC 61643-11 and UL1449 ed.5 compliance

The products of the range DS250VG is an extreme duty Type 1+2+3 AC surge protector device designed to protect at the entrance of the electrical installation. This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (eg: buildings equipped with lightning rods). The `Spark gap + Varistor` technology allows a very low level of protection and an absence of following current. The DS250VG is mounted on a DIN Rail and has a double connection for the active conductor, which allows an optimized connection to the network.

Product specifications

Product specifications
product manual
Download file

Electrical Characteristics

SPD type: 1+2+3
Network: 230/400 V
Nominal line voltage Un: 230Vac
Max. AC operating voltage Uc: 255 Vac
Max. load current IL: 100 A
Temporary Over Voltage (TOV) Charasteristics - 5 sec (Without disconnection) UT: 335 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn (Without disconnection or with safety disconnection) UT: 770 Vac withstand
Residual Current Ipe: None
Follow current If: None
Nominal discharge current (15 x 8/20 µs impulses) In: 30 kA
Max. discharge current (max. withstand @ 8/20 µs by pole) Imax: 70 kA
Impulse current by pole (max. withstand 10/350µs by pole) Iimp: 25 kA
Withstand on Combinaison waveform IEC 61643-11 Class III test: 1.2/50µs - 8/20µs Uoc: 20 kV
Withstand on overvoltages IEEE C62.41.1: 20 kV
Admissible short-circuit current Isccr: 50000 A
Connection mode(s): L/N or L/PE
Protection mode(s): Common or Differential mode
Protection level @ In (8/20µs) and @ 6 kV (1,2/50 µs) Up: 1.5 kV
Residual voltage @ In (8/20 µs) Up-in: 1.1 kV
Residuel voltage at 5 kA @ 5 kA (8/20µs) Up-5kA: 0.6 kV
Specific energy by pole max. withstand 10/350 µs W/R: 156 kJ/ohm

Mechanical Characteristics

Technology: VG Technology (MOV+GSG)
SPD configuration: 1-pole
Connection to Network: By screw : 6-35 mm² (50mm² flexible)
Format: 1-pole modular box
Mounting: Symmetrical rail 35 mm (EN60715)
Housing material: Thermoplastic UL94-V0
Operating temperature: -40/+85°C
Protection rating: IP20
Failsafe behavior: Disconnection
Disconnection indicator: 1 mechanical indicator
Remote signaling of disconnection: Output on changeover contact

Disconnectors

Thermal disconnector: Internal
Installation ground fault breaker: Type S or delayed
Fuses: Fuses Type gG - 315 A

Standards

Standards compliance: IEC 61643-11 / EN 61643-11 / UL1449
Certification: UL / CSA / EAC

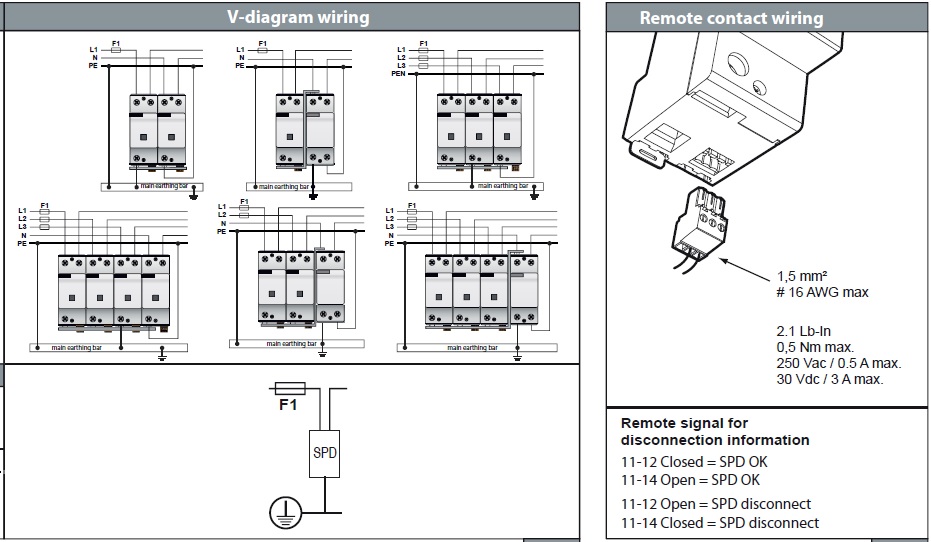

INSTALLATION

DS250VG-300 Type 1+2+3 AC surge protector - 1 pole is connected in parallel on the AC network and must be equipped with external fuses for short-circuit current protection

The total length of parallel connection wires to AC network must be lower than 0.5 m in order not to increase the protection level (Up) provided by the SPD.
Wiring is made by screw connections. On some models, a distribution bus can be used.
The protection wire coming from the SPD must be connected to the bonding bar of the electrical panel. Paralleling the protection wire with phases conductors must be avoided.
The cross sectional wire must be 6 mm² minimum for Type 2 SPD and 16 mm² for Type 1.
Local earthing resistance must be in compliance with the electrical rules.

Further information can be found in IEC 61643-12 standard (selection and application principles for low voltage SPD).

Combine two DS250VG-300 to get DS252VG-300 used for AC single phase network
Combine three DS250VG-300 to get DS253VG-300 used for AC 3-phase network TNC/IT
Combine four DS250VG-300 to get DS254VG-300 used for AC 3-phase + N network TNS
Combine three DS250VG-300 + DS100EG-600 to get DS254VG-300/G used for AC 3-phase + N network TT/TNS
