DS254E-300/G Type 1+2 AC surge protector - 3-phase+N

Reference price :

Select a product to request a quote

DS254E-300/G Type 1+2 AC surge protector - 3-phase+N

Name: DS254E-300/G Type 1+2 AC surge protector - 3-phase+N
Brand: CITEL
SKU: DS254E-300/G
Availability: InStock
Rating: 5 (1 reviews)

Series

DS250E
Model

DS254E-300/G
Brand / Made in

CITEL / FRANCE

Type 1 + 2 unipolar surge protector
Iimp total: 100 kA on 10/350µs impulse
Imax : 140 kA on 8/20µs impulse
Internal disconnections, status indicators
Remote signaling
IEC 61643-11, EN 61643-11 and UL1449 ed.5 compliance

The DS250E is an extreme duty Type 1+2 designed to protect the entrance of the electrical installation. They are used to protect biphase, 3-phase or 3-phase + neutral networks in common mode or in common and differential mode. The 'Multi-Varistor' technology used allows the best possible behavior for the LV network (no follow-on current). The DS250E is mounted on a DIN Rail and has a double connection for the active conductor, which allows an optimized connection to the network.

Product specifications

Product specifications
product manual
Download file

Electrical Characteristics

SPD type (following IEC tests): 1+2
Network: 230/400 V 3-phase+N
AC system: TT-TNS
Nominal line voltage Un: 230/400 Vac
Max. AC operating voltage Uc: 330 Vac
Max. load current(if series connection) IL: 100 A
Temporary Over Voltage (TOV) Charasteristics - 5 sec (Without disconnection) UT: 335 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn (Without disconnection or with safety disconnection) UT: 440 Vac disconnection
Temporary Over Voltage N/PE (TOV HT) (Without disconnection or with safety disconnection) UT: 1200 V/300A/200 ms withstand
Residual Current Leakage current to Ground Ipe: None
Operating current Continious current at Uc Ic: 2 mA
Follow current If: None
Nominal discharge current (15 x 8/20 µs impulses) In: 70 kA
Max. discharge current (max. withstand @ 8/20 µs by pole) Imax: 140 kA
Impulse current by pole (max. withstand 10/350µs by pole) Iimp: 25 kA
Total lightning current(max. total withstand @ 10/350µs) Itotal: 100 kA
Admissible short-circuit current Isccr: 50 000 A
Connection mode(s): L/N and N/PE
Protection mode(s): Common/Differential mode
Protection level L/N @ In (8/20µs) Up L/N: 2.5 kV
Protection level N/PE @ In (8/20µs) Up N/PE: 1.5 kV
Specific energy by pole (max. withstand 10/350 µs) W/R: 156 kJ/ohm

Mechanical Characteristics

Technology: MOV
SPD configuration: 3-phase + N
Connection to Network: By screw terminals: 6-35mm² / by bus
Format: 1-pole modular box assembled
Mounting: Symmetrical rail 35 mm (EN 60715)
Housing material: Thermoplastic UL94 V-0
Operating temperature: -40/+85°C
Protection rating: IP20
Failsafe mode: Disconnection from AC network
Disconnection indicator: 3 mechanical indicator by pole
Remote signaling of disconnection: Output on changeover contact
Dimensions: See diagram

Disconnectors
Thermal disconnector: Internal
Installation ground fault breaker: Type S or delayed
Fuses: Fuses Type gG - 315 A
Standards

Standards compliance: IEC 61643-11 / EN 61643-11 / UL1449 ed.4
Certification: EAC

INSTALLATION

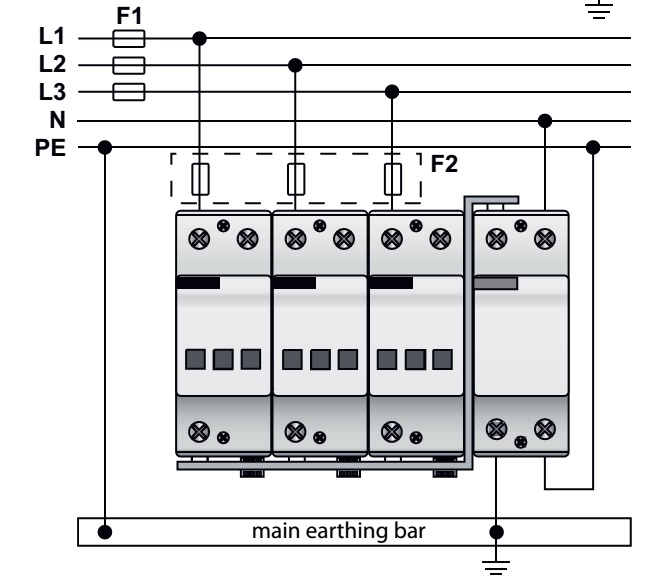

DS254E-300/G Type 1+2 AC surge protector - 3-phase+N are connected in parallel on the AC network and must be equipped with external fuses for short-circuit current protection

The total length of parallel connection wires to AC network must be lower than 0.5 m in order not to increase the protection level (Up) provided by the SPD.
Wiring is made by screw connections. On some models, a distribution bus can be used.
The protection wire coming from the SPD must be connected to the bonding bar of the electrical panel. Paralleling the protection wire with phases conductors must be avoided.
The cross sectional wire must be 6 mm² minimum for Type 2 SPD and 16 mm² for Type 1.
Local earthing resistance must be in compliance with the electrical rules.

Further information can be found in IEC 61643-12 standard (selection and application principles for low voltage SPD).
