MJ8-POE-C6A surge protector for PoE++ and 10Gb Ethernet

Reference price :

Select a product to request a quote

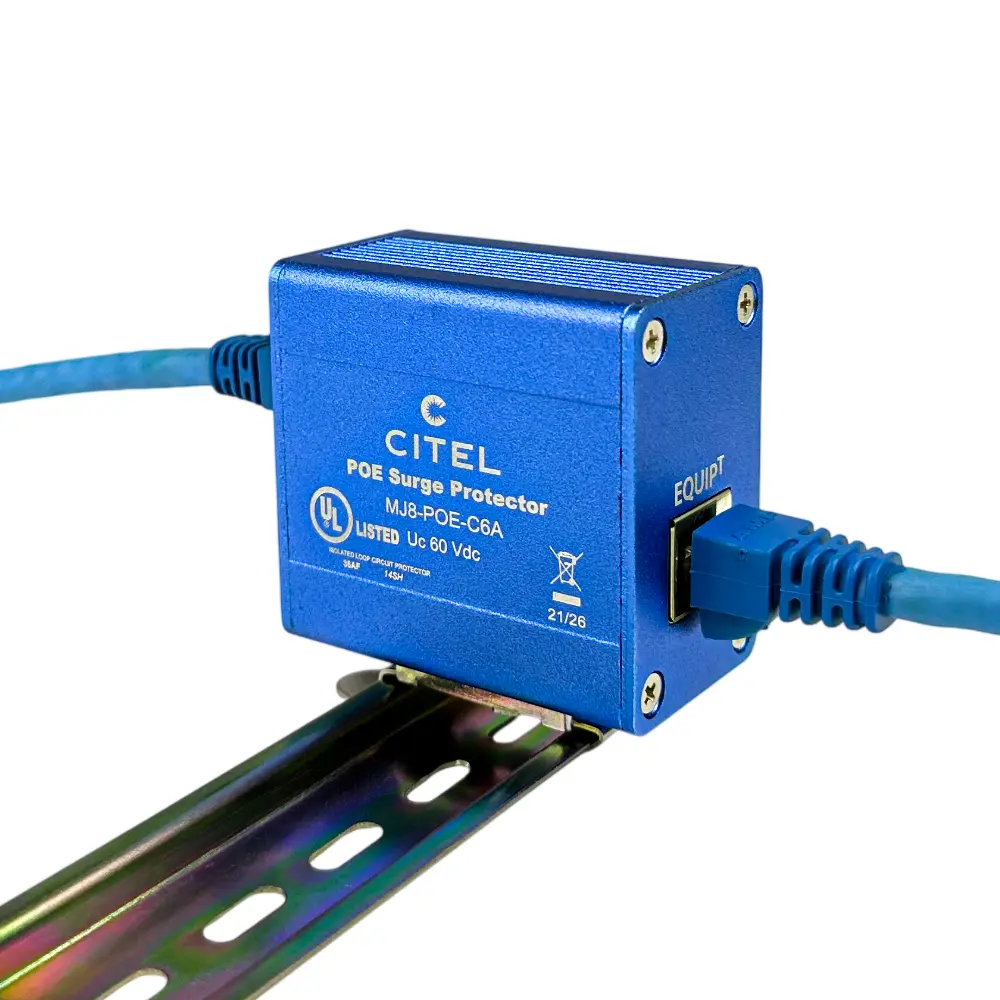

MJ8-POE-C6A surge protector for PoE++ and 10Gb Ethernet

Name: MJ8-POE-C6A surge protector for PoE++ and 10Gb Ethernet
Brand: CITEL
SKU: MJ8-POE-C6A
Availability: InStock
Rating: 5 (1 reviews)

Series

MJ8
Model

MJ8-POE-C6A
Brand / Made in

CITEL / FRANCE

POE++ compatible
Gigabit Ethernet (Cat.6A)
Shielded enclosure and connectors
2 kA discharge capability
UL497B certified
IEC 61643-21, EN 61643-21 compliance

The MJ8-POE-C6A is designed to protect sensitive data-processing equipment connected to a POE++ (Power over Ethernet) network from transient overvoltages. This SPD is qualified with the maximum transmission speed and cabling category used for these Ethernet networks: 10Gigabit Ethernet and Category 6A. Obviously, it is applicable for the Ethernet networks with lower categories.

The MJ8-POE-C6A surge protector is deployed in signal network applications with data transmission speeds up to 10 GMbps. The surge protector is housed in a shielded enclosure with high quality RJ45 shielded jacks. The transient protection circuit is based on high energy gas discharge tubes (GDT) and a network of fast response silicon avalanche diodes (SAD) to achieve sharp clamping of very large surge events.

Product specifications

Product specifications
product manual
Download file

ELECTRICAL PROPERTIES

Network: 10Gigabit Ethernet - Cat 6A cabling specification
Nominal line voltage Un: 48 Vdc
Max. DC operating voltage Uc: 60 Vdc
Max. frequency f max.: 500 MHz
Max. data rate: 10 Gbps
Insertion loss: < 1 dB
Protection level Up: 70 V
Impulse current Iimp: 500 A
Line/Line Nominal discharge current In L/L: 500 A
Line/Ground Nominal discharge current In L/PE: 2000 A

MECHANICAL PROPERTIES

Technology: GDT+Clamping diode
SPD configuration: 4 pairs+shielded
Connection to Network: RJ45 shielded female input/output
Format: Metallic box with connectors input/output

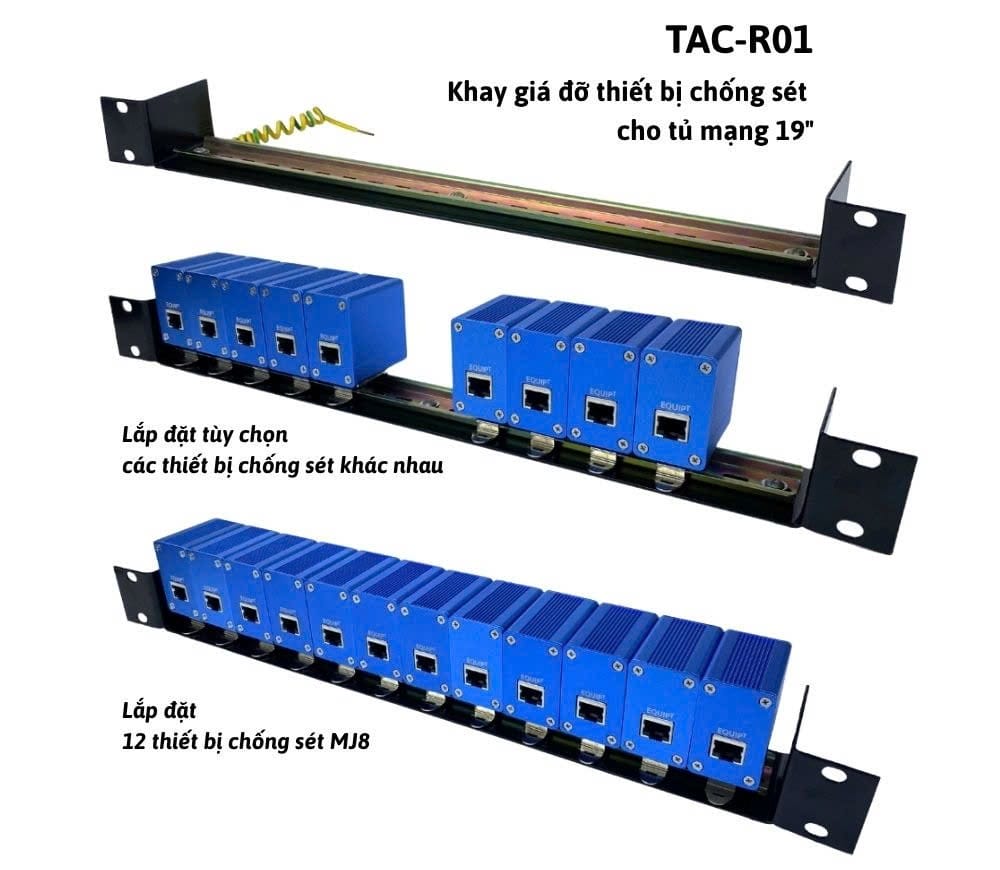

Mounting: Mounting flange,Screw lug, DIN Rail
Accessory(s) provided: DIN rail adapter, screw, screw nut, earthing plate, countersunk screw, cable shoe
Housing material: Aluminium
Operating temperature: -40/+85°C
Protection rating: IP20
Failsafe mode: Short-circuit
Disconnection indicator: Transmission interrupt - default mode 2
Pinout: (1-2)(3-6)(4-5)(7-8)
Dimensions: See diagram

NORMS

Standards compliance: IEC 61643-21/ EN 61643-21 / UL497B IEEE 802-3af/3at/3bt/ ANSI/TIA-568-C.1
Certification: UL listed

INSTALLATION
The surge protector for IT networks must be installed while respecting the following principles:

SPDs must be installed on the both sides of the transmission line (e.g. server side and terminal equipment side)
The surge protector and the protected equipment must be interconnected with the bonding network of the installation.
The earthing conductor (between the earth output of the SPD and the bonding circuit of the installation) must be as short as possible (less than 0.50 m).
The AC power supply of the equipment must also be surge protected.
