CXC06-B/MF coaxial surge protector for video transmission networks

Reference price :

Select a product to request a quote

CXC06-B/MF coaxial surge protector for video transmission networks

Name: CXC06-B/MF coaxial surge protector for video transmission networks
Brand: CITEL
SKU: CXC06-B/MF
Availability: InStock
Rating: 5 (1 reviews)

Series

CXC06
Model

CXC06-B/MF
Brand / Made in

CITEL / FRANCE

Coaxial surge protector for video transmission networks
Technology: GDT + R + Diode
Network: coaxial DC-70 MHz
Impedance: 50 ohm
Max. load current: 0.5 A
Max Power: 6 W
Max. discharge current Imax: 10 kA
Impulse current Iimp: 2.5 kA / 10 kA
Low insertion loss: ≤ 0.6 dB
BNC connector male/female
Standards compliance: IEC 61643-21 / EN 61643-21 / UL497E

CXC06-B/MF

Coaxial surge protector for video transmission networks

CXC surge protectors are designed to protect sensitive equipment, connected to coaxial lines as computer networks, video-transmission, against transient surge voltages and disturbances created by lightning. The scheme of CXC, gas tube/clamping diode hybrid association allowing heavy discharge current and low residual voltage.*

CXC06-B/MF is a version with BNC connector male/female.

lắp đặt thiết bị chống sét CXC06-B/MF bảo vệ cho camera quan sát

Application example

Product specifications

Product specifications
product manual
Download file

ELECTRICAL PROPERTIES

Network: coaxial DC-70 MHz
Nominal line voltage Un: 6 V
Max. DC operating voltage Uc: 8 V
Max. frequency fmax: DC-70 MHz
Insertion loss: ≤ 0.6 dB
Return loss: ≥ 20 dB
Impedance Z: 50 ohms
VSWR: < 1.5:1
Max. Load current IL: 0.5 A
Operating current (continious current at Uc) Ic: none
Max. discharge current (max. withstand @ 8/20 µs by pole) Imax: 10 kA
Protection level (Following the test category C3 (IEC61643-21) - Line/Line) Up: 25 V / 600 V
Impulse current (2 x 10/350µs Test - D1 Category) Iimp: 2.5 kA / 10 kA
Nominal discharge current (8/20µs Test x 10 - C2 Category) In: 5 kA
Max Power: 6 W
DC Pass: yes

MECHANICAL PROPERTIES

Technology: GDT + R + Diode
Connection to Network: Connector BNC Male/Female
Format: Metallic box
Mounting: on cable
Housing material: Brass
Operating temperature: -40/+85°C
Protection rating: IP20
Outdoor application: no
Failsafe mode: Short-circuit - transmision cut-off - fault mode 2
Disconnection indicator: transmission interrupt
Weight: 0.064 kg

STANDARDS

Standards compliance: IEC 61643-21 / EN 61643-21 / UL497E
RohS compliance: yes

INSTALLATION, LOCATION OF THE SPD

The efficiency of coaxial protectors is highly dependent on proper installation, in particular their connection to the earthing network of the installation.
The following installations rules must be strictly observed to ensure the efficiency:

Equipotential bonding network: all the bonding conductors of the installation must be interconnected and connected to the installation earthing network.

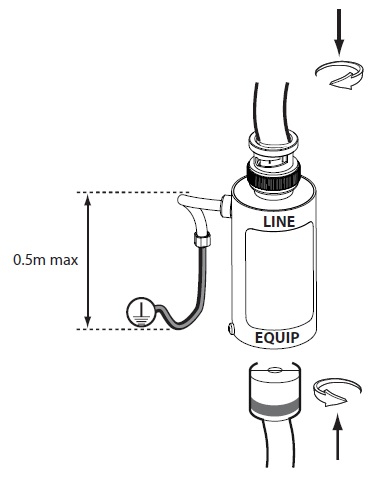

Optimized connection of the protector to the bonding network: to reduce the residual voltages during lightning discharge currents, the connection of the protector to the bonding network must be as short as possible (less than 50 cm) and has a proper cross section (at least 4 mm²).

The «feedthrough mounting» versions perfectly meet all these requirements.
Warning: Carefully remove all paintings or insulating coatings to ensure good contact..

Location of the protectors: they should preferably be placed at the entrance of the installation (to limit the penetration of lightning currents) and also near sensitive equipment (to enhance protection).
