TerraStat TS400-SS-24 Charge Dissipation Terminal

Charge Dissipation Terminals

Introduction
TerraStat® is the latest design in lightning dissipation technology. Science and experience show that TerraStat® Charge Dissipation Terminals, and the structures on which they are installed, are much less likely to sustain a direct lightning strike than unprotected structures or structures with traditional lightning protection systems.
Applications
TerraStat® TS100: Standard Protection Office buildings, shelters, industrial facilities, homes, and warehouses
TerraStat® TS400: Enhanced Protection Monopoles, petrochemical, high-mast lightning, communication towers, and externally mounted cameras
TerraStat® TS500 & TS510: Enhanced Protection Communication towers, bridges, petrochemical storage facilities, and stacks

• TS500 (Vertically Mounted)
• TS510 (Horizontally Mounted)

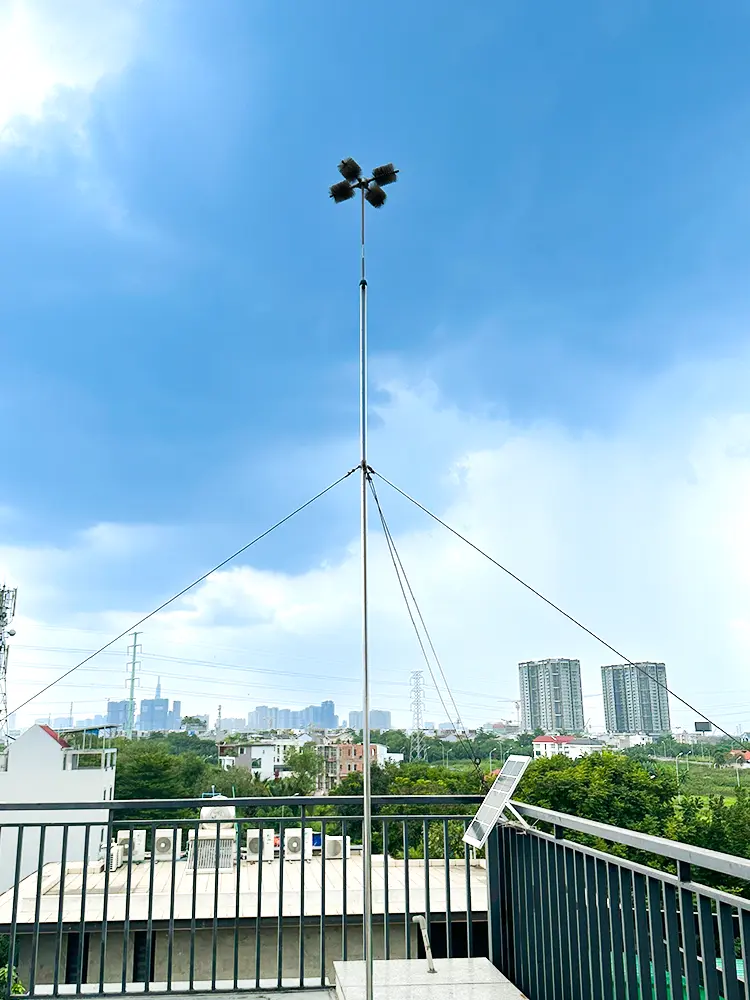

TerraStat® TS400 Dissipation Terminals
Using the same features as the TerraStat® TS100, the TerraStat® TS400 provides a higher level of charge dissipation. It is constructed of Stainless Steel or Aluminum and utilizes four stainless steel dissipation brushes attached to a single elevation conductor for higher dissipation on a single mount. The TerraStat® TS400 is ideally suited for protecting high mast light poles, security cameras, SCADA antenna systems, and smaller monopoles and towers used for communications.
