DACN1-35VGS-10-440 Type 1+2+3 Single phase AC surge protector

Electrical Characteristics

• SPD type 1+2+3
• Max. AC operating voltage Uc: 440 Vac
• Max. load current IL: 100 A
• Temporary Over Voltage (TOV) Charasteristics - 5 sec.(Without disconnection)UT: 580 Vac withstand
• Temporary Over Voltage (TOV) Charasteristics - 120 mn (Without disconnection or with safety disconnection) UT: 770 Vac disconnection
• Residual Current Leakage current to Ground Ipe: None
• Follow current If: None
• Nominal discharge current 15 x 8/20 μs impulses In: 35 kA
• Max. discharge current max. withstand @ 8/20 μs by pole Imax: 70 kA
• Impulse current by pole max. withstand 10/350μs by pole Iimp: 35 kA
• Withstand on Combination waveform IEC 61643-11 Class III test: 1.2/50μs - 8/20μs: Uoc 6 kV
• Specific energy by pole max. withstand 10/350 μs W/R: 306 kJ/ohm
• Protection level@ In (8/20μs) and @ 6 kV (1,2/50 μs) Up: 1.8 kV
• Admissible short-circuit current Isccr: 50 000 A

Mechanical Characteristics

• Technology VG Technology (MOV+GSG)
• SPD configuration Single phase
• Connection to Network By screw terminals: 2.5-25mm² (35mm² rigid)
• Format 1-pole modular box
• Mounting Symmetrical rail 35 mm (EN 60715)
• Housing material Thermoplastic UL94 V-0
• Operating temperature Tu -40/+85°C
• Protection rating IP20
• Failsafe mode Disconnection from AC network
• Disconnection indicator 1 mechanical indicator by pole - Red/Green
• Remote signaling of disconnection Output on changeover contact
• Wiring for remote signaling 1.5 mm² max.
• Max. Voltage/Current for remote signaling 250 V / 0.5 A (AC) / 30 V / 3 A (DC)
• Dimensions See diagram - 2TE (EN43880)
• Weight 0.408 kg

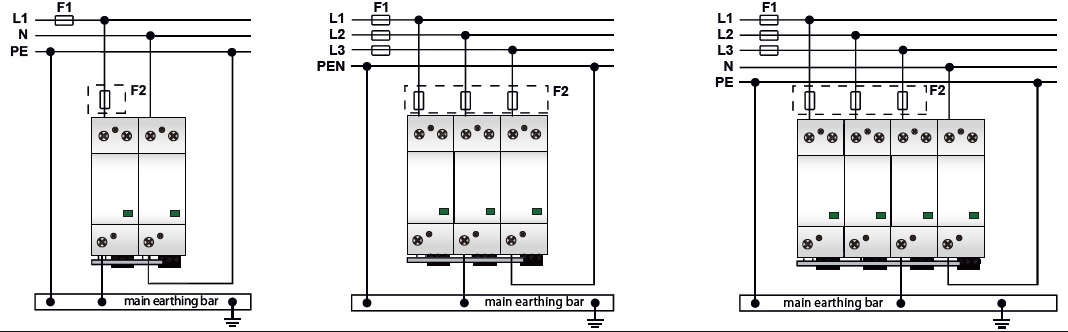

Disconnectors

• Thermal disconnector Internal
• Installation ground fault breaker Type 'S' or delayed
• Fuses Fuses type gG - 315 A

Standards

• Standards compliance EN 61643-11 / IEC 61643-11
• Certification EAC
