DAC50S-10-760 Type 2 AC surge protector (1P, Type 2, Imax 50kA)

Reference price :

Select a product to request a quote

DAC50S-10-760 Type 2 AC surge protector (1P, Type 2, Imax 50kA)

Name: DAC50S-10-760 Type 2 AC surge protector (1P, Type 2, Imax 50kA)
Brand: CITEL
SKU: DAC50S-10-760
Availability: InStock
Rating: 5 (1 reviews)

Series

DAC50
Model

DAC50S-10-760
Brand / Made in

CITEL / FRANCE

Type 2 AC surge protector - 1-pole
SPD configuration: Single phase
Max. AC operating voltage : 760 Vac
Technology: MOV
Residual Current : < 1 mA
Max. discharge current : 50 kA
Protection level : 2.9 kV
Admissible short-circuit current: 50 000 A

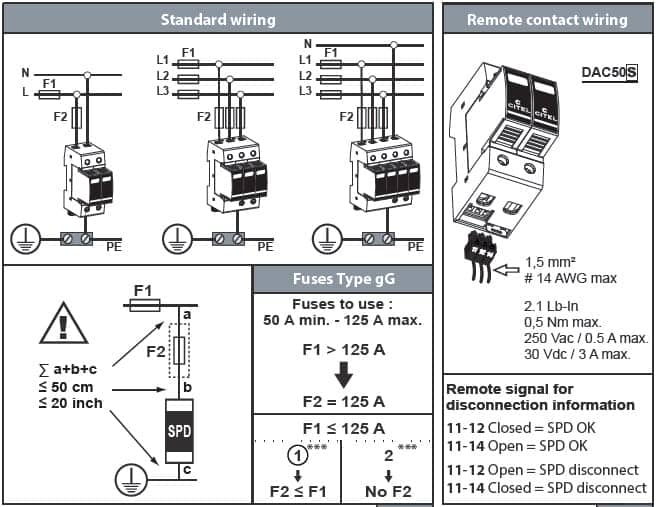

Remote signaling of disconnection: Output on changeover contact
Pluggable module for each phase
Standards compliance: IEC 61643-11 / EN 61643-11
Certification: OVE / UL

DAC50S-10-760

The pluggable surge protectors Type 2 DAC50, are designed to protect AC powerline at the main switchboard of the installation. These SPDs are based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards and to provide a maximum protection efficiency, a high impulse current capability and an improved reliability. The surge protectors DAC50 are available in multipolar version and in several voltages to protect single or 3-phase networks.

Product specifications

Product specifications
Download file

Electrical Characteristics

SPD type IEC 2
Max. AC operating voltage Uc 760 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.Without disconnection UT: 1000 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn Without disconnection or with safety disconnection UT: 1325 Vac disconnection
Residual Current Leakage current to GroundIpe:< 1 mA
Follow current If: None
Nominal discharge current 15 x 8/20 μs impulses In: 20 kA
Max. discharge current max. withstand @ 8/20 μs by pole Imax: 50 kA
Protection level @ In (8/20μs) Up: 2.9 kV
Residual voltage at 5 kA @ 5 kA (8/20μs)Up-5kA: 2.6 kV
Admissible short-circuit current Isccr: 50 000 A
