  • Series
    OFC-RI
  • Model
    OFC-RI-048
  • Brand / Made in
    OBSTA / FRANCE
  • Obstruction light: red medium intensity FAA L-864 (AC 150/5345-43J) ETL certified
  • NVG compatible (with IR)
  • 6 Obsta optics with cover in hard glass and aluminium base
  • Simple installation with no losing parts when opening the flash-head
  • Power supply: 48VDC (-10%, +15%), 10W
  • Alarm in case of light or power failure
  • Surge protection included
  • Choice of the configurations (ICAO medium intensity type B (20, 30, 40, 50 ou 60 flashes per minute) or ICAO medium intensity type C or FAA L-864) through dip-switches inside the light, to be specified at time order

OFC-RI-048

Part Number: 113790RI-048

Obstruction light: red medium intensity

OBSTAFLASH COMPACT OFC series are red medium intensity obstruction lights, L-864 FAA certified with IR compatible with night vision goggles (NVG); ICAO Red Medium intensity type B & C / CAA compliant (fixed mode).

OBSTAFLASH COMPACT OFC series is dedicated to night only obstruction lights especially for telecom mast, buildings close to airports and all kind of obstacle from 45 to 150 meters high. 6 Obsta optics with cover in hard glass and aluminium base, they are ideal for all kind of obstacle.

Product range OBSTAFLASH COMPACT OFC:

OFC - XX - XXX - RG

  • XX: color: RI = red and infrared
  • XXX: input voltage: 048 = 48Vdc; 240 = 110-240Vac; SOL = 10-24Vdc for 12vdc solar kit
  • RG: option: R = with built-in photocell; G = with GPS

MAIN REFERENCE:

  • OFC-RI-048 (P/N 113790RI-048) voltage 48 Vdc
  • OFC-RI-240 (P/N 113790RI-240) voltage100-240 Vac
  • OFC-RI-SOL (P/N 113790-RI-SOL) voltage Solar 12-24 Vdc

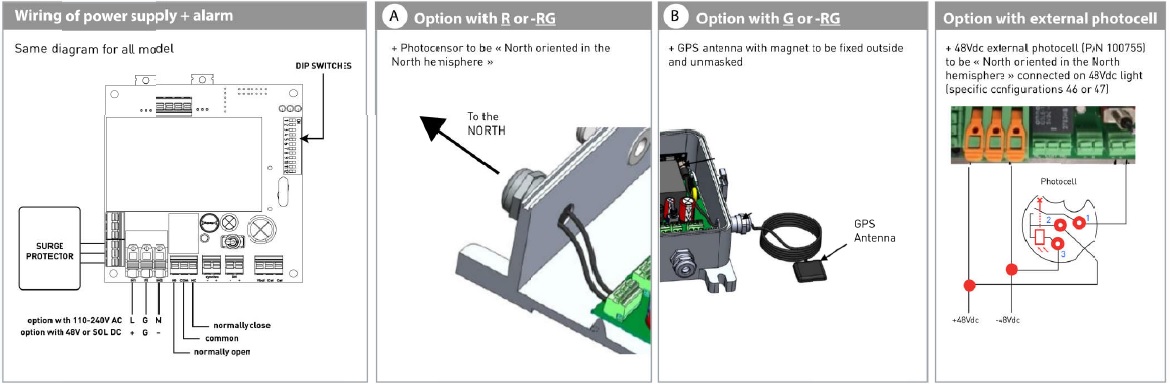

Lắp đặt đèn báo chướng ngại vật hàng không cường độ thấp và trung bình cho cột anten



ELECTRICAL PROPERTIES

  • Main voltage: 48VDC (-10%; +15%)
  • Average wattage: 10W (ICAO and FAA configuration @ 30 flashes per minute)

MECHANICAL PROPERTIES

  • IP degree: IP66
  • Wiring: Entry of cable by glands nickel plated brass and connection by terminals
  • Operating temperature: -40/+55°C
  • Size of the light: 220mm x 190mm x 190mm
  • Weight: 5kg
  • Cable entry diameter: from 7 to 13 mm
  • Wire cross section: up to 6mm² for power supply, up to 1,5mm² for signal
  • Attachment: 4 mounting holes dia.9mm, 200mm x 140mm

PHOTOMETRIC PROPERTIES

  • IR intensity and wavelength: > 600mW/sr @ 800-900nm
  • Effective light output night mode at 0° on site: 2000cd (red) with IR
  • Color night time: Red
  • Vertical beam spread: >3°
  • Horizontal beam spread: 360°
  • Flash per minute: 30

STANDARDS

  • ICAO annex 14 chapter 6, FAA (AC 150/5345-43J), UK MOD, Transport Canada
  • FAA (AC 150/5345-43J), ETL listed, DGAC (France)
