SeriesNAVILITE
-
ModelNAVILITE-24V-CABLE (P/N 113906)
-
Brand / Made inOBSTA / FRANCE
- Obstruction light: red fixed low intensity, ICAO type A/B
- Completely molded and perfectly waterproof
- Bird spike
- No grounding issue, class II
- Total 64 leds wired 4 by 4 in active redundancy
- Power supply: 24VDC +/-10%, 6W, 250mA
NAVILITE-24V-CABLE
Part Number: 113906
Obstruction light: red fixed low intensity, ICAO type A/B, 24VDC
Led NAVILITE® red fixed obstruction lights (low intensity and L-810) since 2003. The NAVILITE series is dedicated to night only obstruction lights especially for telecom mast, buildings close to airports and all kind of obstacle below 45 meters high.
Completely molded with 64 leds divided in 16 independent led circuits, they are ideal for all kind of obstacle.
ELECTRICAL PROPERTIES
- Main voltage: 24VDC +/-10%
- Wattage: 6 W
- Current drawn: 250 mA
- Life time: ~10 years
MECHANICAL PROPERTIES
- IP degree: IP66 for the light and IP65 for the power supply

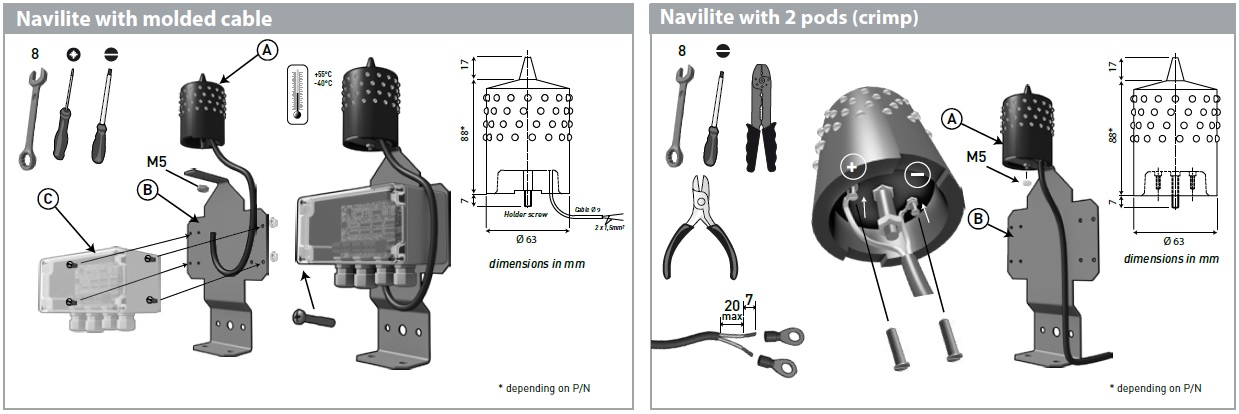

- Wiring: On stripped wires (molded cable lenght 35cm) (2 power wires)
- Operating temperature: -40/+55°C
- Size of the light: 112mm (height) x 63mm (over diameter)
- Weight: 370 gr
- Attachment: 1 screw M5 provided
PHOTOMETRIC PROPERTIES
- Luminous intensity: > 32 cd
- Color night time: Red fixed
- Vertical beam spread: >10°
- Horizontal beam spread: 360°
STANDARDS
- Standards compliance: ICAO annexe 14 chapter 6 (8th edition 07/2018), EASA (4th edition 2017)
