• Series
    DAC40C
  • Model
    DAC40CS-31-275
  • Brand / Made in
    CITEL / FRANCE
  • Compact, multipole type 2
  • Conductivity per pole: In= 20 kA; Imax= 40 kA
  • Protection modes - common and/or differential
  • Safe disconnect device
  • Transverse / longitudinal voltage protection
  • Energetically coordinated
  • Pluggable protection module
  • Remote signalling
  • Conforms to IEC 61643-11 / EN 61643-11
  • Approved according to UL1449 ed.4

DAC40CS-31-275

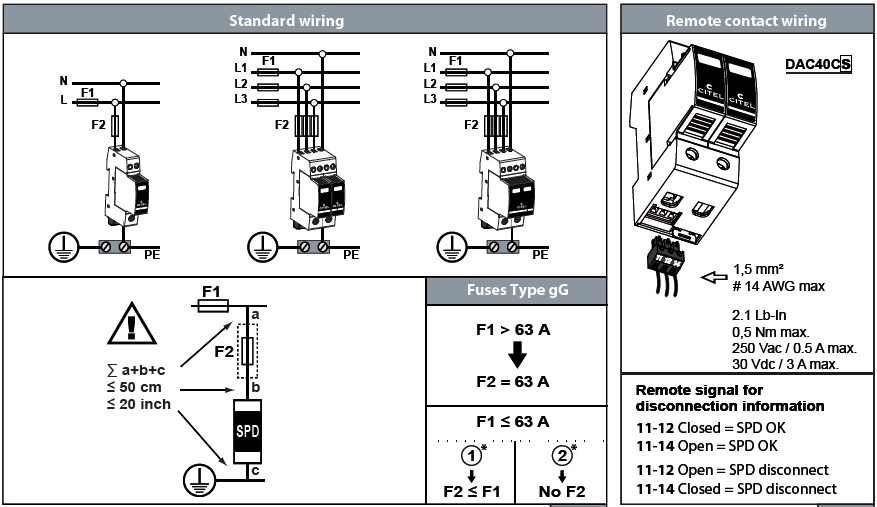

Remote signaling of disconnection: output on changeover contact

The DAC40CS-31-27 Type 2 Compact plugable surge protectors (SPD) are intended to be connected at the TGBT or divisional panel level. Their compact format allows them to be installed in very small spaces. The DAC40C Type 2 SPDs are available have a discharge capacity of 40 kA, in single-phase or 3-phase configuration and with various voltages in order to protect any type of networks.

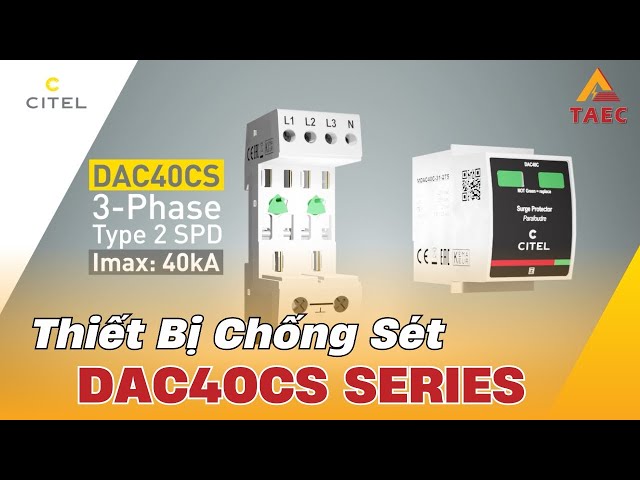

Video Module DAC40CS - Tích hợp, Nhỏ gọn và Hiệu quả

Electrical Characteristics
  • SPD: type 2
  • Network: 230/400 V
  • AC system: TT-TNS
  • Max. AC operating voltage Uc: 275 Vac
  • Temporary Over Voltage (TOV) Characteristics - 5 sec. Without disconnection UT: 335 Vac withstand
  • Temporary Over Voltage (TOV) Characteristics - 120 mn Without disconnection or with safety disconnection UT: 440 Vac disconnection
  • Temporary Over Voltage N/PE (TOV HT) Without disconnection or with safety disconnection UT: 1200 V/300A/200 ms withstand
  • Residual Current (Leakage current to Ground) Ipe: None
  • Follow current If None (Nominal discharge current 15 x 8/20 μs impulses) In: 20 kA
  • Max. discharge current max. withstand @ 8/20 μs by pole Imax: 40 kA
  • Total Maximum discharge current max. total withstand @ 8/20 μs ImaxTotal: 40 kA
  • Protection mode(s): L/N and N/PE
  • Protection level L/N (@ In (8/20μs)) Up L/N: 1.25 kV
  • Protection level N/PE (@ In (8/20μs)) Up N/PE: 1.5 kV
  • Admissible short-circuit current Isccr: 10 000 A
Mechanical Characteristics
  • Technology: MOV+GDT
  • SPD configuration: 3-phase+Neutral
  • Connection to Network By screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35mm² rigid)
  • Format: Plug-in modular box
  • Mounting: Symmetrical rail 35 mm (EN 60715)
  • Housing material: Thermoplastic UL94 V-0
  • Operating temperature Tu: -40/+85°C
  • Protection rating: IP20
  • Failsafe mode: Disconnection from AC network
  • Disconnection indicator: 2 mechanical indicators - Red/Green
  • Spare module(s): MDAC40C-31-275
  • Remote signaling of disconnection: output on changeover contact
  • Dimensions: See diagram - 2TE (EN43880)
Disconnectors
  • Thermal disconnector: Internal
  • Installation ground fault breaker: Type 'S' or delayed
  • Back-up protection device: 50 A min. - 125 A max. - Fuses Type gG
Standards
  • Standards compliance: IEC 61643-11 / EN 61643-11 / UL1449 ed.5
  • Certification: KEMA
