Name: DPVN1-6CS-21Y-1200 Type 1+2 PV surge protector 1200 Vdc - CTC Technology
Brand: CITEL
SKU: DPVN1-6CS-21Y-1200
Availability: InStock
Rating: 5 (1 reviews)

Series

DPVN1-6CS
Model

DPVN1-6CS-21Y-1200
Brand / Made in

CITEL / FRANCE

Type 1+2 PV surge protector 1200 Vdc - CTC Technology
Network: PV 1200 Vdc
Nominal PV voltage Uocstc: 1000 Vdc
Max. PV operating voltage: 1200 Vdc
Discharge current In/ Imax : 20 kA/ 40 kA (8/20 μs)
Total Maximum discharge current : 60 kA (8/20 μs)
Impulse currents Iimp/Itotal: 6.25/12.5 kA (10/350µs)
Current withstand short circuit PV Iscpv: 15 kA
Residual Current : < 0.1 mA
Follow current If: None
Protection mode(s): Common/Differential mode
Technology: MOV
Remote signaling of disconnection: Output on changeover contact
Standards compliance: IEC 61643-31 / EN 61643-31 / EN 50539-11 / UL1449 ed.5

DPVN1-6CS-21Y-1200

The DPVN1 is CITEL's new series of type 1+2 SPDs for Photovoltaic. Based on CITEL's patented CTC Technology, the DPVN1 incorporates a thermosensitive separation point placed at the center of the SPD guaranteeing the safest disconnection on the market. The products are designed to be mounted on a DIN rail. Compact and equipped with a failure indicator, these products are easy to install and maintain.

Product specifications

Product specifications
product manual
Download file

ELECTRICAL PROPERTIES

SPD type: 1+2
Network: PV network 1200 Vdc
Nominal PV voltage Uocstc: 1000 Vdc
Max. PV operating voltage Ucpv: 1200 Vdc
Residual Current (Leakage current to Ground) Ipe: < 0.1 mA
PV Permanent Operating current (Current consumption at Ucpv) Icpv: < 0.1 mA
Follow current If: None
Nominal discharge current In: 20 kA
Max. discharge current Imax: 40 kA
Total Maximum discharge current (max. total withstand @ 8/20 μs) Imax Total: 60 kA
Impulse current by pole Iimp: 6.25 kA
Total lightning current Itotal: 12.5 kA
Current withstand short circuit PV Iscpv: 15000 A
Connection mode(s): +/-/PE
Protection mode(s): Common/Differential mode
Protection level +/- Up: 4.3 kV
Protection level +/PE (-/PE) Up: 4.3 kV

MECHANICAL PROPERTIES

Technology: MOV
Connection to Network: By screw terminals: 2.5-25mm² (35mm²) / by bus
Format: Compact monobloc box
Mounting: Symmetrical rail 35 mm (EN 60715)
Housing material: Thermoplastic UL94 V-0
Operating temperature: -40/+85°C
Protection rating: IP20
Failsafe mode: All pole disconnection from PV network
Disconnection indicator: 1 mechanical indicator - Red/Green
Remote signaling of disconnection: Output on changeover contact
Dimensions: See diagram - 2.5TE (EN43880)
Weight: 0.433 kg

DISCONNECTORS

Thermal disconnector: CTC Technology integrated
Fuses: without

STANRDARDS

Standards compliance: IEC 61643-31 / EN 61643-31 / EN 50539-11 / UL1449 ed.5

Installation

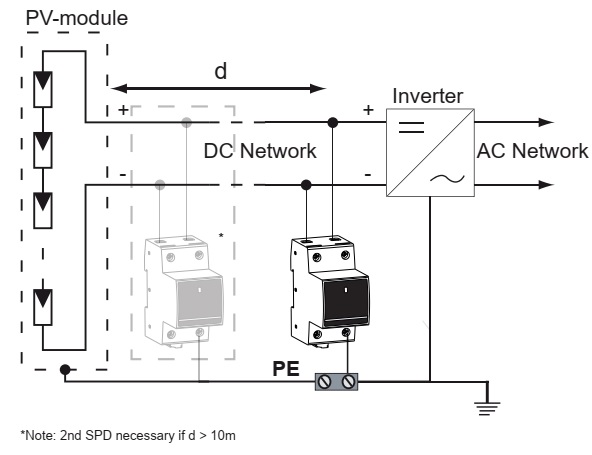

DS60VGPV-1500G/51 surge protector is connected in parallel on the DC network

The total length of parallel connection wires to DC network must be lower than 0.5 m in order not to increase the protection level (Up) provided by the SPD.
Wiring is made by screw connections. On some models, a distribution bus can be used.
The protection wire coming from the SPD must be connected to the bonding bar of the electrical panel. Paralleling the protection wire with phases conductors must be avoided.
Local earthing resistance must be in compliance with the electrical rules.
