DDC30-20-65 Type 1/2 48Vdc surge protector 2-pole

Reference price :

Select a product to request a quote

DDC30-20-65 Type 1/2 48Vdc surge protector 2-pole

Name: DDC30-20-65 Type 1/2 48Vdc surge protector 2-pole
Brand: CITEL
SKU: DDC30-20-65
Availability: InStock
Rating: 5 (1 reviews)

Series

DDC30
Model

DDC30-20-65
Brand / Made in

CITEL / FRANCE

Surge protector for DC supplies 2-pole
Nominal DC voltage: 48Vdc
Max. operating voltage: 65 Vdc / 50 Vac
Type 1/2 application
Max. discharge current by pole 30 kA
Impulse current by pole 3kA
prIEC 61643-41 compliance

DDC30-20-65

Type 1/2 48Vdc surge protector 2-pole

The DDC range is Type 1/2 pluggable surge protectors designed for equipment connected to DC powerlines. The technology based on high energy varistor equipped with thermal disconnection mechanism offers protection efficiency and and a maximal reliability.

DDC30 SPD range

DDC30-10-65 : 1-pole DC surge protector (+ or -), Un 48Vdc
DDC30-10-85 : 1-pole DC surge protector (+ or -), Un 75Vdc
DDC30-20-65 : 2-pole DC surge protector (+ and -), Un 48Vdc
DDC30S-20-65 : 2-pole DC surge protector (+ and -), Un 48Vdc with remote signaling of disconnection
DDC30-20-85 : 2-pole DC surge protector (+ and -), Un 75Vdc
DDC30S-20-85 : 2-pole DC surge protector (+ and -), Un 75Vdc with remote signaling of disconnection

DDC30-20 được lắp đặt trên đường dây nguồn một chiều để bảo vệ cho các thiết bị điện

Product specifications

Product specifications
product manual
Download file

ELECTRICAL PROPERTIES

SPD type: 1/2
Network: 48 Vdc
Nominal line voltage Un: 48 Vdc
Nominal DC voltage Un-dc: 48 Vdc
Max. DC operating voltage Uc-DC: 65 Vdc
Max. AC operating voltage Uc-AC: 50 Vac
Residual Current Ipe: < 0.1 mA
Follow current If: None
Nominal discharge current (15 x 8/20µs impulses) In: 15 kA
Max. discharge current (max. withstand @ 8/20µs by pole) Imax: 30 kA
Total Maximum discharge current (8/20µs) Imax Total: 60 kA
Impulse current by pole (max. withstand 10/350µs by pole) Iimp: 4 kA
Total lightning current (max. total withstand @ 10/350µs) Itotal: 8 kA
Connection mode(s): +/PE and -/PE
Protection mode(s): Common mode
Protection level +/PE (-/PE) Up: 300 V / 600 V
Admissible short-circuit current Isccr: 50 kA

MECHANICAL PROPERTIES

Technology: MOV
SPD configuration: 2-poles
Connection to Network: Srew terminals: 2.5-25mm² +/-: 1.5-10mm²
Plugable: yes
Mounting: Symmetrical rail 35 mm (EN 60715)
Housing material: Thermoplastic UL94 V-0
Operating temperature: -40/+85°C
Protection rating: IP20
Failsafe mode: Disconnection from DC network
Disconnection indicator: 2 mechanical indicators - Red/Green
Spare module(s): MDDC30-65
Remote signaling of disconnection: Option DDC30S-20-65: Output on changeover contact

STANDARDS

Standards compliance: prIEC 61643-41
Certification: EAC

DISCONNECTOR

Thermal disconnector: Internal
Back-up fuses: 50 A min. - 125 A max. - Fuses Type gG

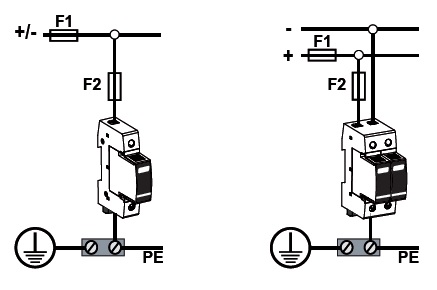

Installation

DDC30-20-65 surge protectors are connected in parallel on the DC network and must be equipped with external fuses for short-circuit current protection

The total length of parallel connection wires to DC network must be lower than 0.5 m in order not to increase the protection level (Up) provided by the SPD.
Wiring is made by screw connections. On some models, a distribution bus can be used.
The protection wire coming from the SPD must be connected to the bonding bar of the electrical panel. Paralleling the protection wire with phases conductors must be avoided.
Local earthing resistance must be in compliance with the electrical rules.
