DS250E-48DC Type 1+2 48Vdc surge protector 1-pole

Reference price :

Select a product to request a quote

DS250E-48DC Type 1+2 48Vdc surge protector 1-pole

Name: DS250E-48DC Type 1+2 48Vdc surge protector 1-pole
Brand: CITEL
SKU: DS250E-48DC
Availability: InStock
Rating: 5 (1 reviews)

Series

DS25x-48DC
Model

DS250E-48DC
Brand / Made in

CITEL / FRANCE

2-poles surge protector 48 Vdc
Type 1 and Type 2 application
In 25 kA / Imax 70 kA
Remote signaling
Iimp 25 kA
IEC 61643-11 and EN 61643-11 compliance

DC power networks are used in more and more applications and the threat of disturbances due to surge voltages must be taking in to account like for AC power lines.
DS250E-48DC surge protector is based on varistors matched to the network voltage 48Vdc, the varistors have thermal disconnection devices to control any end-of-life case. DS250E-48DC is designed to protect one line (+ or -), so need to combine two DS250E-48DC to protect equipment connected to DC power supplies from lightning surges.

DS250E-48DC is DIN rail compatible and is connected in parallel on the line to be protected.

Product specifications

Product specifications
product manual
Download file

ELECTRICAL PROPERTIES

SPD type: 1+2
Network: 48 Vdc
Nominal line voltage Un: 48 Vdc
Nominal DC voltage Un-dc: 48 Vdc
Max. DC operating voltage Uc: 75 Vdc
Residual Current Ipe: < 0.1 mA
Operating current Ic: < 0.1 mA
Follow current If: None
Nominal discharge current In: 25 kA
Max. discharge current Imax: 70 kA
Total Maximum discharge current Imax Total: 140 kA
Impulse current by pole Iimp: 25 kA
Specific energy by pole W/R: 156 kJ/ohm
Connection mode(s): +/PE or -/PE
Protection mode(s): Common mode/Differential mode
Protection level +/PE (-/PE) Up: 500 V

MECHANICAL PROPERTIES

Technology: MOV
SPD configuration: Single phase
Connection to Network: By screw terminals: 6-35mm² / by bus
Format: 1-pole modular box
Mounting: Symmetrical rail 35 mm (EN 60715)
Housing material: Thermoplastic UL94 V-0
Operating temperature: -40/+85°C
Protection rating: IP20
Failsafe mode: Disconnection from DC network
Disconnection indicator: 3 mechanical indicators
Remote signaling of disconnection: Output on changeover contact
Dimensions: See diagram

NORMS

Standards compliance: IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification: EAC

DECONNECTOR

Thermal disconnector: Internal
Fuses: Fuses type gG - 315 A

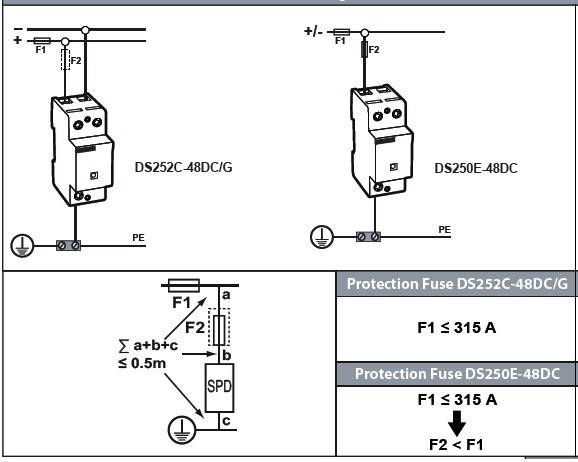

Installation

DS250E-48DC surge protectors are connected in parallel on the DC network and must be equipped with external fuses for short-circuit current protection

The total length of parallel connection wires to DC network must be lower than 0.5 m in order not to increase the protection level (Up) provided by the SPD.
Wiring is made by screw connections. On some models, a distribution bus can be used.
The protection wire coming from the SPD must be connected to the bonding bar of the electrical panel. Paralleling the protection wire with phases conductors must be avoided.
Local earthing resistance must be in compliance with the electrical rules.
